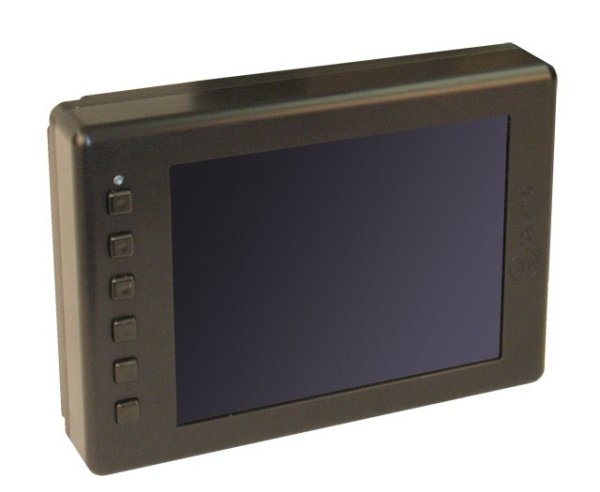

The DuraVIS® 3006 is a rugged flat panel 6.5” TFT Liquid Crystal Display (LCD) offering daylight readability and a hardened mechanical design well suited for avionics, military, vehicular, and other high reliability applications. Ideal for space-constrained and retrofit applications, this extremely compact (1.5” thick) and lightweight (3lbs) unit is packaged in a hardened aluminum housing equipped with flexible mounting options and an anti-glare protective acrylic cover for impact protection and explosive decompression.
Display Readability
Featuring a high luminance (800 Nit) LED backlight for long lamp life (50,000 hours), direct sunlight readability and excellent dimming capabilities (down to 4%), the DuraVIS 3006 produces crisp, clear images in full VGA (640x480 pixel) resolution. The unit also boasts a wide 160-degree viewing angle, 600:1 contrast ratio, and six front bezel buttons to control brightness, power, and on-screen display (OSD) functions.
Standards
Qualified to MIL-STD-810F environmental and MIL-STD-461E EMI/EMC compliance standards, the DuraVIS 3006 monitor offers exceptional low-temperature operation (-20C) and resistance to shock and vibration profiles experienced by jet and rotary aircraft.
Liquid Cristal Display:
- 6.5” (16.6cm) Diagonal a-SI TFT LCD with LED Backlight
- Viewable Area (W x H): 5.2” (132.5mm) x 3.9” (99.4mm)
- Acrylic Front Protective Window
- Anti-Reflective Coated (MIL-C-14806 Compliant)
- ITO Coated for Glare and EMI Control
Optical Characteristics:
- Luminance (Brightness): 800 cd/m˛ (nit)
- Dimming: 30 Levels of Brightness Control
- Resolution: 640 x 480 Pixels
- Colors: 262,144
- Contrast: 600:1 (typ)
- Response Time: 13ms (typ)
- Viewing Angle: 160° (H), 140° (V)
Backlight:
- LED backlight (Bulb Life MTBF: 50,000 Hours
Video Input:
- VGA Analog Video Input
- EVGA Differential Input (for Long Line Apps up to 500ft w/ Cat5)
Power Supply:
- Power Input: 14 to 35VDC (28VDC Nominal)
- Compliance: MIL-STD-704E
- Reverse Input Voltage Polarity Protection
Power Consumption:
Mechanical:
- Dimension: 192.02 x 136.14 x 38.1 mm (7.560” x 5.360” x 1.50”)
- Weight: Approx. 1.36kg
- Mounting: Rear Panel Hole Pattern (for Bolting Mounting Bracket)
- Enclosure Material: Aluminum Alloy 6061-T6
- Finish: Black Anodize (MIL-A-8625, Type II, Class 2)
- Connectors: Female DB-15 (VGA/EVGA Differential), Female DB-15 (Power)
- Cooling: No Moving Parts. Passive.
Standards:
- EMI/EMC Qualified to MIL-STD-461E:
- CE-101, Power Leads, 30Hz to 10kHz
- CE-102, Power Leads, 10kHz to 10MHz
- CS-101, Power Leads, 30Hz or 2x Power Freq. to 150kHz
- CS-114, Bulk Cable Injection, 10kHz to 200MHz
- RE-101, Magnetic Field, 30Hz to 100kHz
- RE-102, Electric Field, 2MHz to 18GHz, 2 Configs., Fixed Wing < 25m
- RS-103, Electric Field, 2MHz to 18GHz (10Khz to 200MHz and 800MHz to 18GHz at 200 V/m,
and 200MHz to 800MHz at 20 V/m)
Environmental:
- MIL-STD-810F
- Operating Shock: 15g, 11ms, ˝ Sine Wave, 3 Pos/Neg per Axis
- Random Vibration: 0.022-G˛/10-Hz to 0.0026-G˛/2000-Hz
- Altitude: Sea level to 41,000 feet (12,497 meters) @ 4°C to 50°C
- Ingress: Fungus, Salt Fog, Sand, Dust, Volcanic Ash, Expl. Atmosphere
- Rapid Decompression: -15K Ft to Sealevel, Sealevel to 41K Ft (12,497m)
- Altitude: Sea level to 41,000 feet (12,497 meters) @ 4°C to 50°C
Operating Temperature:
Humidity:
