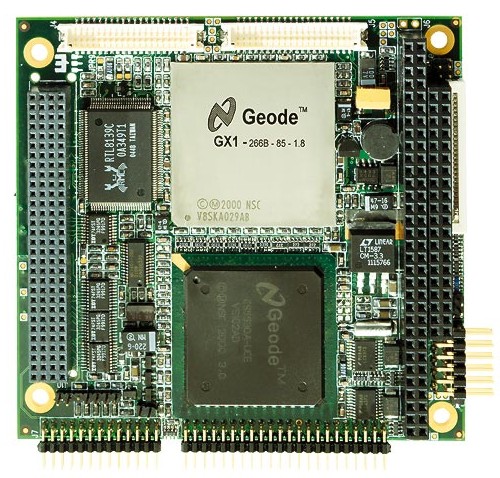

The CPU-1432 is an Embedded Pentium-like Computer in PC/104-Plus form factor. The peripherals integrated on board are: SVGA, two Serial ports and parallel port, Fast Ethernet controller, IDE, Keyboard, Mouse, one USB 1.0 and one AC97 Audio Sound Port. The module is built around the Geode GX1 processor and can be equipped with 64 or 128MB of soldered DRAM. The BIOS is located in Flash Eprom and is re-programmable on-board. The set-up parameters are saved on the same Flash allowing the module to operate without a battery.
The CPU-1432 includes a video accelerator that drives both LCD-TFT and CRT monitors. The module supports SSD (Solid State Disk) IDE devices such as DOM, CompactFlash and ATA Flash that function like HDD units in rugged conditions where standard devices cannot operate reliably. Other peripherals available on board are: the Floppy disk controller multiplexed with the parallel port, Real Time Clock and Watch Dog. The module requires a single +5V only.

Architecture: PC PCI/ISA Compatible
Dimensions: Compliant with the PC/104-Plus standard
Processor: Geode GX1 - 266 MHz
Memory: 64-128 MB DRAM
Solid State Disk: Disk On Module, Compact Flash or ATA Flash on IDE interface
Operating System: WinXPE?, WinCE?, VxWorks?, Linux?, QNX?
BIOS: Standard with embedded extensions
Interfaces:
IDE ctrl
Floppy ctrl (on parallel port)
SVGA-CRT and LCD
10/100 Mbps Fast Ethernet
USB 1.0 port
AC97 Audio Sound Port
Serial ports: 1 RS232, 1 RS232/422/485
Parallel port (bi-directional EPP-ECP)
Keyboard AT
Mouse PS/2
Bus: PCI/ISA bus complying with PC/104-Plus standard
Power Supply: Single +5V
Connectors:
COM 1 and 2
SVGA CRT
LCD - TFT
USB
PS/2 mouse
Auxiliary Power Connector
Parallel
IDE
Fast Ethernet
Multifunction (KB, SPK, WD, Reset, RTC Battery)

EMBEDDED ENHANCED BIOS:
? The Flash-BIOS has a capacity of 1 Mbyte, 384KB of which are used for the BIOS and its extensions. The remaining part of 640KB can be used as Read-Only Disk and to store the OS and the Used Programs/Data.
? SSD support as Read or R/W disk.
? Watch_Dog management.
? Set_Up in Flash in order to avoid Set_Up corruption in field.
? Virtual Peripheral Support (V.P.S.): this mode allows to bootstrap from the parallel or serial ports and redirect Keyboard, Video, Floppy Disk on the serial/parallel ports before booting the Operating System. It is also possible to redirect any of these peripherals as default setting.


MODULE'S ACCESSORIES:
? TP RJ45 Ethernet adapter
? AC97 & USB adapter
? Parallel-FDD adapter cable
? 2mm to 2.54mm IDE cable
? IDE to ATA adapter Kit
? Cable Set Kit
? Flat Panel adapter kit



OPTIONS:
? Custom BIOS
? Fast BIOS BOOT
? Extended Operating Temperature Range
? Custom Connectors


SOLID STATE DISK:
Supported Devices:
Disk On Module and Compact Flash on IDE interface
No drivers needed

Physical Characteristics

Dimensions:
90x96 mm (3.6" X 3.8")
Thickness:
15mm (0.6")
Power supply:
single +5V?
Power consumption:?
1030mA w/ 64MB DRAM
1080mA w/ 128MB DRAM
Op. temp.:
0 ? 60 ?C (Extended Temperature range versions available)
