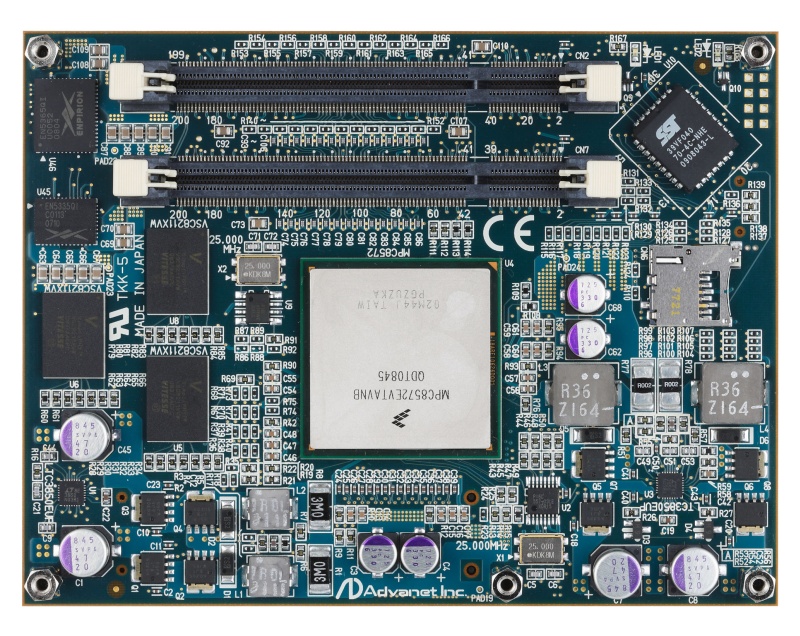

The Adbc7515 is a Computer-On-Module (COM) that is equipped with Freescale® Dual Core Processor MPC8572™. It is a PICMG COM.0 R1.0-compatible board. It can be used in combination with a carrier board to provide a system expansion.
Interfaces
Dual Core Processor MPC8572 features an ECC-compatible memory controller, a Gb Ethernet controller, a PCI Express route function, an end-point function, and a Serial RapidIO interface.
The Adbc7515 features an DDR2-667-capable SDRAM as main memory which is expandable up to 4GB.

Architecture:

• COM Express

CPU:

• Freescale® MPC8572™ (1.5GHz)
• L1 cache: 32kB/32kB, L2 cache: 1MB

Memory:

• DDR2-667 SO-RDIMM Dual Channel: 4GB (2x 2GB) with ECC support
• BoorROM: 512kB FLASH memory
• EEPROM: 2kb IC2
• MicroSD: one socket
• 2x IC2 ports

Ethernet:

• 3x 10/100/1000 BASE-T
• VSC8211™

PCI Express:

• PCI Rev.2.0 specification
• x8 lane
• Can be used as x4 lane if RapidIO is used

Serial RapidIO:

• RapidIO Interconnect Specification Revision 1.2
• x4 lane

Serial Ports:

• 2x TIA/EIA-232

Watchdog Timer:

• The board is reset at the timeout
• Setting is available from 15.6ms to 1s at the timeout

COM Express:

• PICMG COM.0 R1.0 COM Express module base specification
• Pin out: type 5

Power Supply:

• +5V DC
• +12V DC
• Battery power supply: 3.0V DC

Power Consumption:

• 60 W max (+12V DC)

RoHS:

• Compliant

Mechanical:

• Dimension: 125 x 95 mm (4.92” x 3.74”)
• Width: 18mm (0.71”) (heat spreader included but not heat sink)
• Weight: 115g (board)
• Weight of heat spreader: 75g

Operating Temperature:

• 0 to 55°C

Humidity:

• 0 to 90%

Temperature Monitoring:

• Internal temperature is monitored
• Surface temperature of print board is monitored

Operating Systems Supported:

• VxWorks®, Linux®
