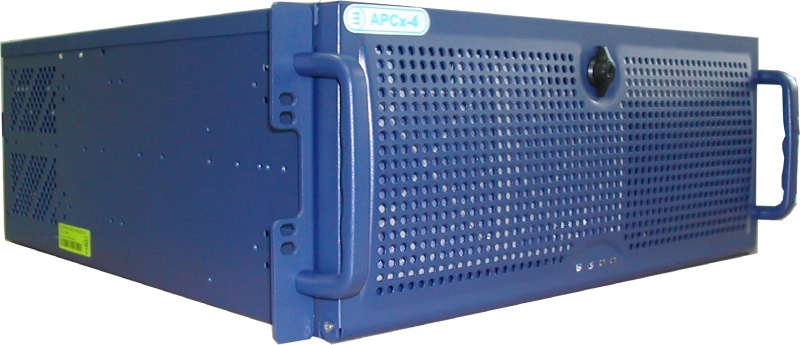

The APCx-4 is an Intel based 19”, CE-Compliant, Industrial PC system that supports Intel® Core 2 Duo™, Pentium 4™ and Celeron™ processor technologies.
Enclosure
The system is contained within a heavy-duty 19” enclosure (4U high by 480mm deep) with 1.2m steel chassis. A 12-slot passive backplane provides options for extra PCI slots, support for RAID cards and special add-on cards such as image processing boards.
Configurations
Various standard configurations are available, offering Windows XP Professional® and Windows Vista® ultimate (32-bit or 64-bit) systems.

Format:

• Standard socket 755 design

CPU:

• Options:

  - Intel® Celeron D™ 356 3.33GHz
  - Pentium 4™ 650 3.4GHz (fitted as standard)
  - Inte®l Core 2 Duo™ 1.8 to 2.67GHz

Chipset:

• Intel® Q965™

Memory:

• DDR2: up to 4GB
• 160GB SATAII hard disk drive standard

Ethernet:

• 2x Gb Ethernet ports

Serial Ports:

• 1x RS-232
• 1x RS-232/422/485

USB:

• x8 USB universal serial ports

Slots:

• PCI (9), PCI-E x16 (1), PCI-E x4 (1)
• PICMG 1.3 Backplane
• 460W PFC PSU standard

Standards:

• BS EN60950
• IEC/UL 60950-1 (EN203067)
• CSA C22.2 n°60950

Power Supply:

• 115V to 230V AC (auto-ranging 90V to 264V AC)

Power Consumption:

• 480W max

Mechanical:

• Dimension: 483 x 176.6 x 480 mm (19.02" x 6.96" x 18.90")
• Weight: 18kg including backplane, PSU, disk drives, processor board

Operating Temperature:

• 5 to 45°C

Humidity:

• 0 to 80% non-condensing

MTBF:

• Complete system: 246,000 hours
• PSU MTBF: 100,000 hours @25 C°
• Cooling fans expectancy: 50,000 hours @45°C

Operating Systems Supported:

• Windows XP®, Windows Vista®
