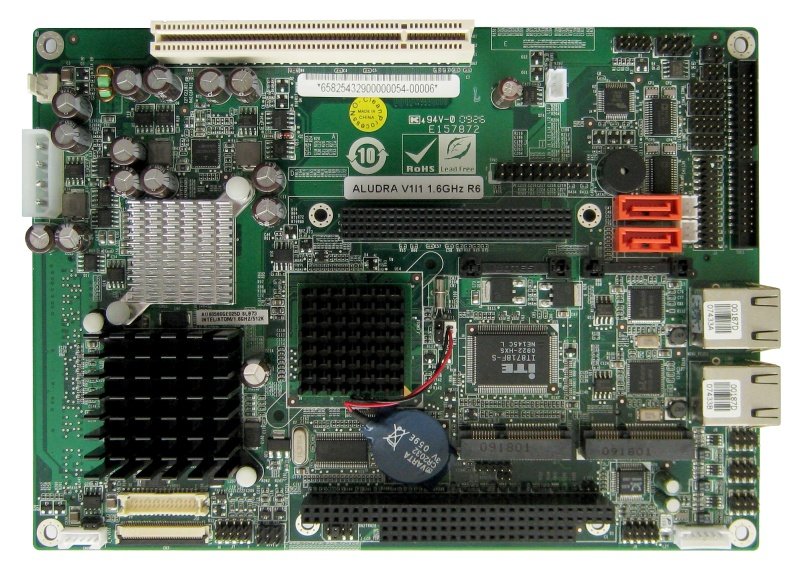

ALUDRA

Single board computer with Atom processor EBX form factor

ALUDRA fan-less processor board provides all the benefits of Intel's Atom LPIA architecture in an EBX form factor. ALUDRA has on board an Intel 945GSE graphics and memory controller and Intel ICH7-M IO controller hub.
ALUDRA is compatible with all major desktop operating systems and is also available with pre-installed ready to run embedded operating systems including Windows XP Embedded and Fedora Linux.
HIGHLIGHTS

  • Low Power Intel Atom Processor @ 1.6GHz
  • High performance x86 compatibility in a fanless design
  • Windows XP Embedded® or Fedora Linux®
  • Extensive onboard connectivity
  • PC/104, PC/104+ and PCIe expandability for 3G and Wi-Fi
  • High resolution graphics (CRT, LVDS and TV-Out)
APPLICATIONS

  • Digital signage
  • Kiosks
  • Industrial gateways
  • Machine control
  • Human Machine Interface (HMI)
  • Process control
