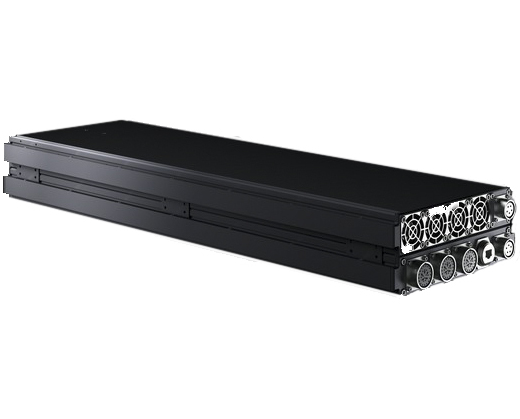

Aurora DuraMater DM-5600 is a rugged HPC system, optimally designed for space and weight constrained military/aerospace ground mobile and airborne environments addressing manned and unmanned applications where reliable high performance computing is required.
DM-5600 shares with other Aurora products a powerful computing architecture: a dual Intel Xeon 5600 series (Six core CPU) motherboard, 24GB of on-board soldered DDR3 memory and a high data retention 256 GB SSD drive. A high speed, high density FPGA device is also present, providing easy adaptability and implementation of dedicated functions and special algorithms, offering a maximum processing power of 700GOps.
DM-5600 is compliant with MIL-STD environmental and EMC regulations, and it is provided with watertight MIL-STD grade connectors which deliver power, a vast choice of CX4 (XAUI, Infiniband, 10GE, SRIO), USB, I2C, RS232, VGA and Ethernet connections.
- Two embedded Xeon 5600 series Intel six core processors
- 12/24/32GB of on board DDR memory
- up to 256GB SSD pre-loaded with a Linux or Windows XP Embedded operating system image to boot out of the box
- Vast choice of external networks and connections at different speeds: from slow serial interfaces to QDR Infiniband
- On board top of the range FPGA for reconfigurable computing and applications
- Vehicle grade 48VDC DC/DC Converter with Voltage/Surge Protection
- Metal chassis with hardened finish
- Amphenol D38999 (MIL-38999) splash resistant connectors
- Compliance with MIL-STD-810G and MIL-STD-461E
- Absence of moving parts
Technical Specifications
- Maximum processing power: up to 167GFlops/unit
- On board RAM: 12/24/32GB DDR3
- Disk drive: 256GB SATA 1.8" SSD
- OS Compatibility: Windows XPe, WinCE, Linux, QNX, VxWorks
- Ethernet: 10/100/1000Mbps port
- Serial: 2x RS-232 ports
- USB: 1 USB 2.0 port
- I2C: 2 ports
- High speed networks: Up to 7 high speed (Infiniband, XAUI, 10GE, SRIO) serial lines available through rugged CX4 connectors. .
- Video: VGA Analog Video Output
- Power Supply: 28-48VDC Nominal Input. Protection against: Reverse, Over Voltage, Surge
- Maximum Power Dissipation: <180 Watts
- Ground: Grounding Lug for Connection to System Chassis Ground
- Altitude: up to 60,000 feet (18,288 meters)
- Temperature: Operating: -40șC to +60șC ambient, Storage: -40șC to +85șC
- Humidity: 5% to 95% (non-condensing); 100% (condensing)
- Physical: Chassis: Aluminum Alloy, Corrosion Resistant. Installation: Flange Mount Baseplate Finish: Anodized per MIL-A-8625, Type II, Class 2
- Ingress: Resistant to Dust, Water, and Moisture Boards are conformally coated
Physical Characteristics
* Weight: 26.45 lbs (12.0 kgs)
- Dimensions: 9.13" x 6.18" x 25.59" (232mm x 157mm x 650mm)
Rugged watertight Mil-spec performance connectors make available power, CX4 (XAUI, Infiniband, 10GE, SRIO), USB, I2C, 2x RS-232, and 10/100/1000 Ethernet network connections. Such a robust combination of function and compact ruggedness enables DuraMater DM-5600 to support a wide range of field applications, and it can be customized with a number of different network configurations. Options include high speed serial interconnections via rugged CX4 connectors, and other customer-specific I/O on available connector pinouts.
Please contact us for more information: aurora@eurotech.com
